Complete sawmill plant Bongioanni 1100

go to product sheet

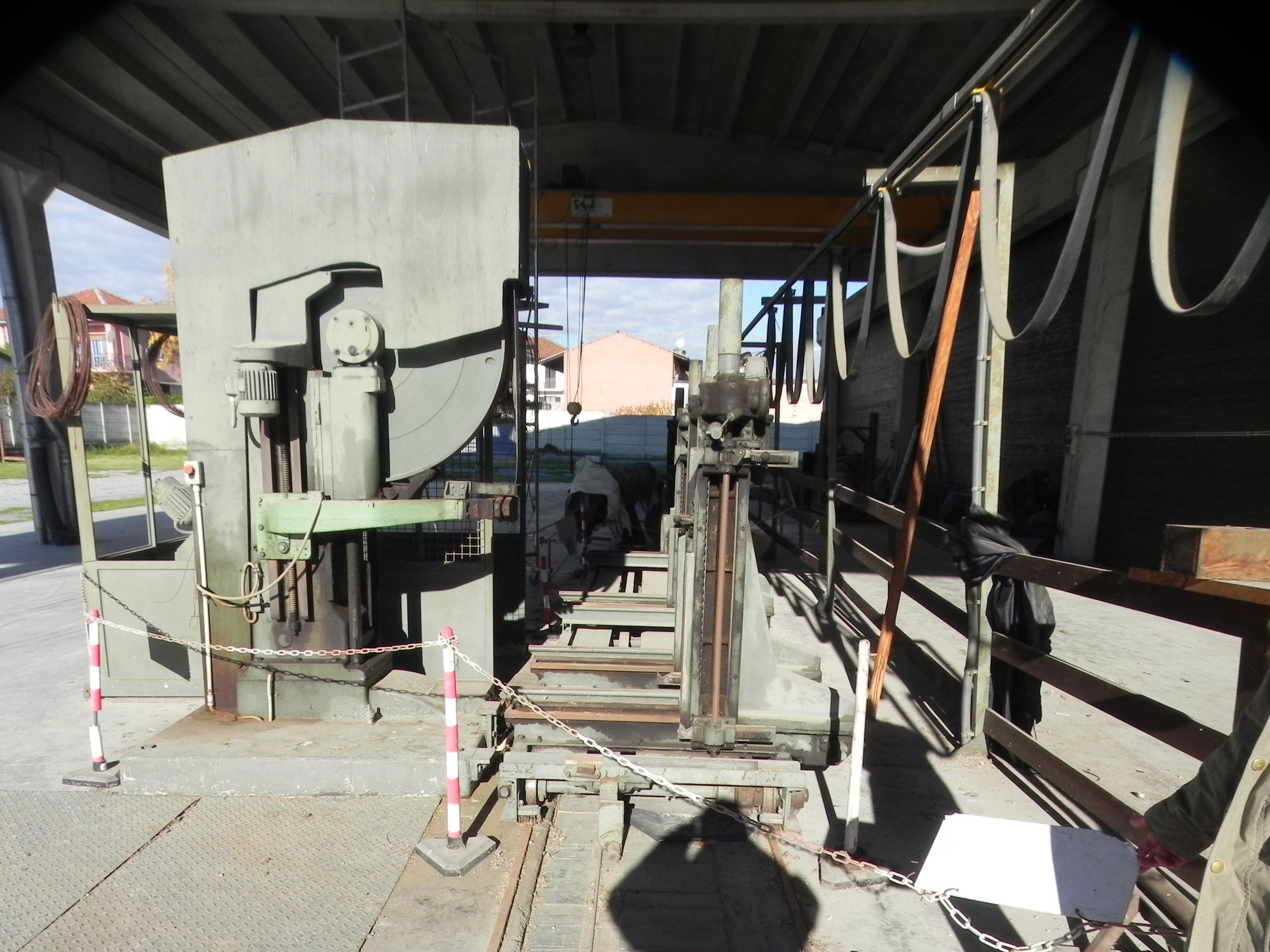

Complete sawmill plant Bongioanni

ELECTRIC CARRIAGE MOD. MCA - BONGIOANNI

Technical characteristics:

• Electric controlled headblocks;
• Electric thickness setting device;
• Rope hydraulic feeding group controlled by speed-change drive unit VARSPE HP55;
• rails;
• headblocks opening 95 cm;
• Rail gauge 95 cm.

LOG BAND SAW 1300 - BONGIOANNI

Technical characteristics:

• Blade max. width 150 mm.
• 50 CV motor with remote starter;
• Electric blade guide and blade tensioning device.

go to product sheet

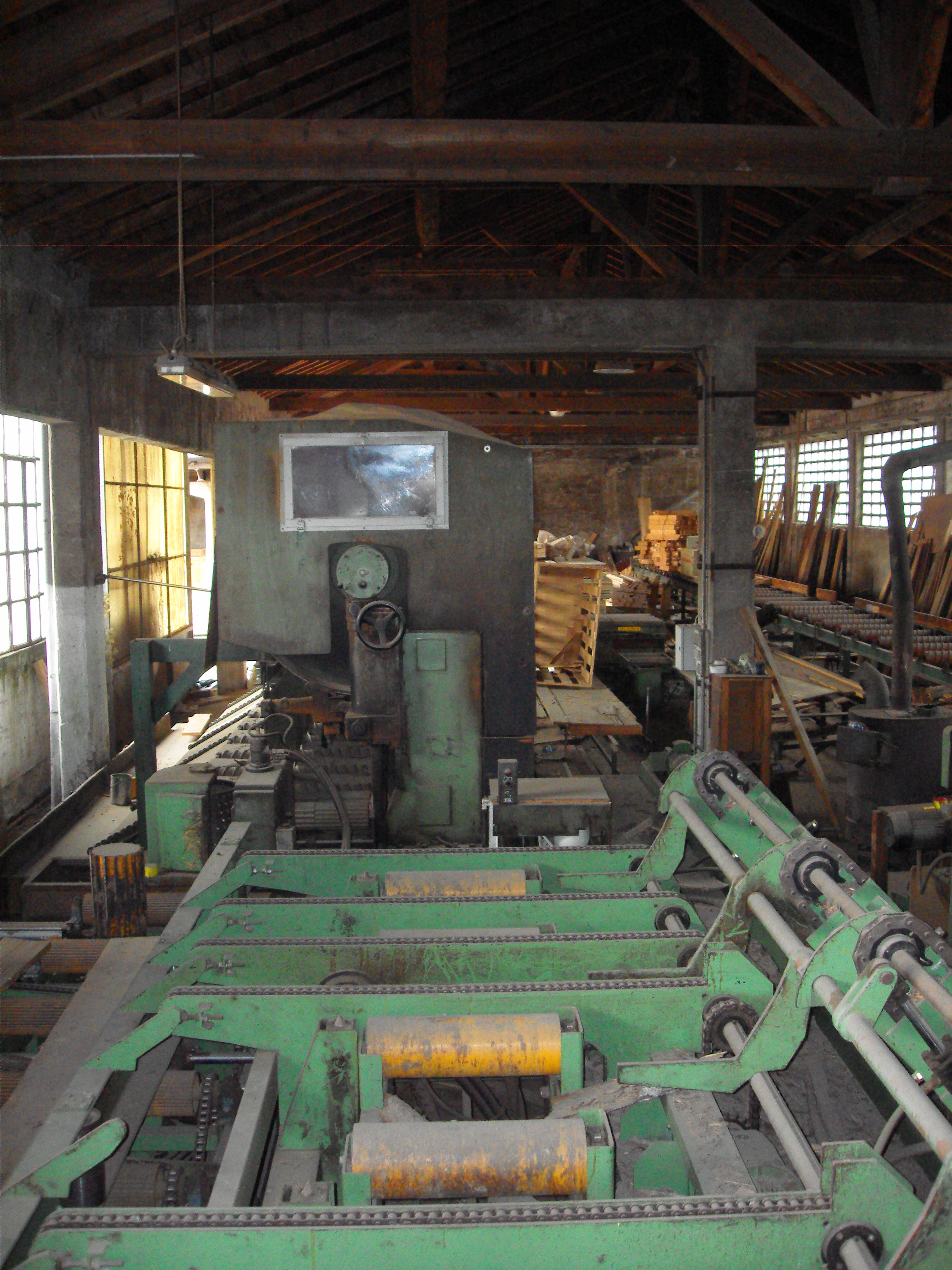

Re-saw line 1300 - Complete plant

go to product sheet

Sawmill plant for pallets equipped with :

• Saw Artiglio 1150 - Blade 150 mm;
• Carriage Artiglio mod. LMI - 3 headblocks - 2 log turners;
• Cut-off saw CURSAL;
• Multi-blade saw COSMEC HP/50;
• Veneer peeling machine for making fruit boxes parts;
• Grinding machine for band saws;
• Automations as shown hereunder.

Reconditioned machine, still assembled.

go to product sheet

PNEUMATIC CART AND WITHOUT CLAW 1100

Plant characteristics:

1983;

With charcoal;

Plant alredy demounted.

Revision adviced.

go to product sheet

Technical characteristics CRO-17.43 wagon

High-strength, torsionally stable chassis
Variable axle driven by independent Brushless motors
Max. offset between 1st and last vice 280 mm
Max. vice opening - blade 950 mm
Max. height of upper harpoons over log bed 850 mm
Harpoon closing movement driven by hydraulic pistons, no. 3 preselectable gripping pressure values 40/80/150
Outfeed of gripping harpoons with continuous positioning from 0 to 150 mm controlled by hydraulic cylinder
Automatic retraction of harpoons when gripping is complete
Transversal movement of vices by means of triple chains driven by 2 brushless motors
Vices travelling speed continuously variable up to 600 mm/sec. Centralised automatic diesel pump lubrication
Log turning chains are driven by Brushless motor with the possibility of clockwise and anticlockwise rotation at three speeds settable by the operator
Chain pulling system
Double-jointed log turner moved by hydraulic cylinders
Control via Brushless motor
Technical specifications SNI.14:

Steel column
Steel flywheels 1400 mm diameter
Blade rotation speed 55 m/sec.
Distance between blade and column 750 mm
Max. cutting height 850 mm
Flywheel band 190 mm
Blades used bicoupe width 231 mm x 1.65 mm
Blade tensioning 15/20 kg
Motor power 90 kW managed by inverter
Track mt 10,00 approx.
Painting RAL 5025 - 7035
Saw movement motor 34 kW
Max. saw movement speed 0-80 m/min
Supplied accessories

Hydraulic blade tensioner
Constant pressure blade guide
Electric tilting upper flywheel
Electric brake by inverter
Motor pulley - Motor belts
With automatic blade and flywheel lubrication via centralised pump, oil and/or vegetable liquids, with tank.
Slide rail oil lubrication by centralised forced pumping. (manual)
Steel supporting frame
Hardened steel wheels with roller bearings
Diesel blade lubrication
TRANSPORTER BELT EVAQUACING TABLE model NTI.8-14

Technical specifications:

Belt length 9 mt
Belt width 780mm
4KW gear motor controlled by inverter
SAW EVAQUACATION BELT model NSI.8-13

Technical characteristics:

Belt length 9.5 mt
Belt width 780 mm
4 KW gear motor managed by inverter
GEA electric feed unit model GEA.SI

Technical characteristics:

Managed by Brushless motor
Triple chain with hydraulic tensioning
Track length 10 m
N°3 hardened steel guide wheels d.300
No. 2 free hardened steel wheels d.300
Length of track support frame 12 m
Frame width 2.45 mt
Centralised automatic pumping diesel lubrication



go to product sheet

• Steel flywheels
• Blade speed 32 m/sec
• Useful cutting width 2,000 mm
• Blade dimensions 260 x 1.65 x 12,000 mm
• Hydraulic blade tensioning
• Manual positioning of the head guide
• Central lubrication of blades and flywheel
• Oil lubrication of manual slide guides
• Horizontal positioning of the saw by sliding on large steel columns with locking devices
• Hydraulic cylinder with chain drive
• 90 kW electric motor
• Power control panel
• Electronic thickness divider with microprocessor for the selection of cutting thicknesses
• Console Legio for control management

• Complete with 3 harpoons
• 2 V-mounted log drivers
• 2 supports for prisms
• Power supply with vector motor

go to product sheet

• Wagon 3 morse, with no.3 hydraulic gyroscopes, complete of saw with flywheels from 1300 of diameter.
• Complete with loading and unloading.
• Revised and disassembled, ready for shipment.
